RSS514

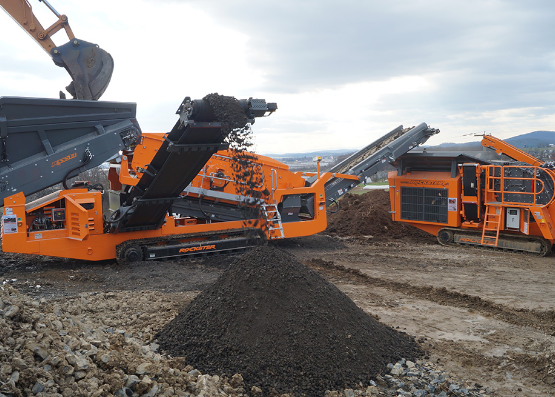

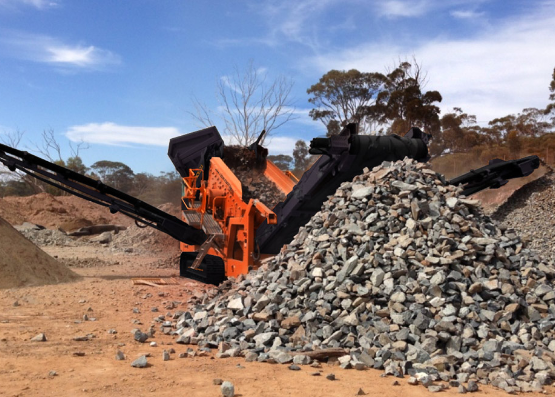

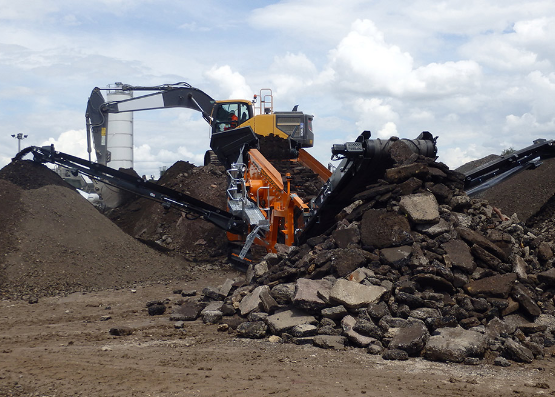

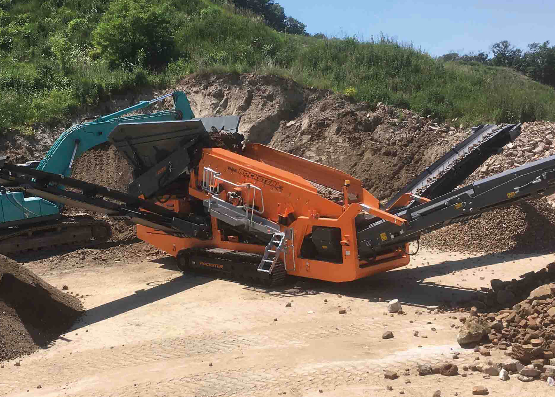

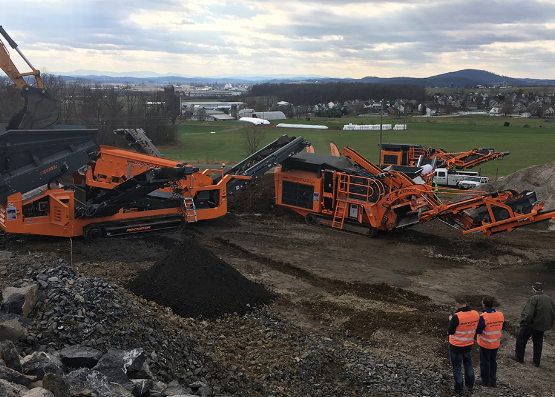

The RSS514 Mobile Scalping Screen is the first of a new generation of scalping screens designed for a wide range of applications with the highest requirement of performance even with heavy-to-screen materials. This scalper can be used for separating demolition debris, asphalt, concrete, bricks, coal, metal, soil, compost, natural stone and many other feeds.

Add To Compare

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

BENEFITS

Features & Benefits

Short set-up time
Easy handling
Low loading height
Robust design
Variable speed control on all belts (excl. fines collection conveyor)
Flip down hopper tailgate to allow direct feed from a crusher belt
Optimum transport dimensions
Hydraulically adjustable screenbox for easy change of screens
Hydraulically foldable hopper walls as basic equipment
Hydraulically foldable discharge belts
Easy access to the engine compartment
Safety-walkways for screenbox

Applications of the Scalper:

As a single machine to create 3 final fractions
As pre-screener before the crusher to create 2 additional defined fractions, the separation of fines serves as wear protection and increases the crusher performance
As a final screening unit after the crusher to separate the crushed product into 3 final fractions

SPECIFICATION

MACHINE NAME

RSS514

APPLICATION

Agriculture, Construction, fertilizer, Minerals, Mining, Recycling

MOTION

Trommel

SCREEN SURFACE AREA

NUMBER OF SEPARATIONS

Up to 2, Up to 3

MESH OPENINGS

Information not available

FEED RATES

Information not available

ANTI BLINDING SYSTEM

Information not available

DIMENSIONS

Screener Surface Both Decks – 4,30 x 1,52 m / 14′ 1″ x 5′ Feed Hopper – 7,20 m³ / 9.4 yd³ Transport Dimensions – Length: 13,60 m / 44′ 7″ – Width: 3,00 m / 9′ 10″ – Height: 3,40 m / 11′ 2″

MACHINE MATERIAL

Steel

SCREEN MATERIAL

Steel

WEIGHT

Weight with apron feed: ~ 27,50 t / 60,600 lbs
