Cryloc Rotary Screen

Cryloc
Ottevanger Logo
The Cryloc Rotary Screen can be found in grain and bulk processing plants across the globe, The wide capacity range makes the Cryloc an essential sifter for the dry cereal processing industry. The two screen decks are specially designed for hammer mills, which grind on different sieve perforations or in combination with a crumbled. Located within the two screen decks is an electro=pneumatic operated valve which can be rotated between the upper and lower screen.

Downloads

Here you can download Brochures and datasheets to further inform you about this machine’s technology and specifications.

BENEFITS

Features

  • Compact design
  • Vibration free operation
  • Capacities from 20 to 180 tph
  • Single screen deck
  • Double screen deck for different product sizes
  • Single drive

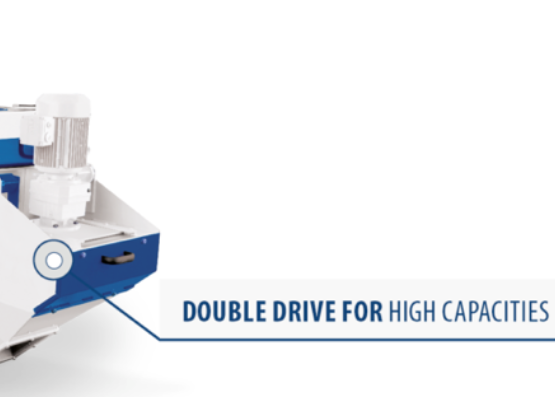

  • Double drive for high capacities (contra rotation)
  • Certified for ATEX zone 21/22

SPECIFICATION

MACHINE NAME
Cryloc Rotary Screen

APPLICATION

Agriculture, feed, food
MOTION
Tumbler
SCREEN SURFACE AREA
10, 25, 50
NUMBER OF SEPARATIONS
Up to 2
MESH OPENINGS
Maximum diameter is 12mm
FEED RATES
Uptown 150tons/hour
ANTI BLINDING SYSTEM
Pulse Jet Cleaning
DIMENSIONS
Information not available
MACHINE MATERIAL
Steel

SCREEN MATERIAL

Information not available
WEIGHT
Information not available
